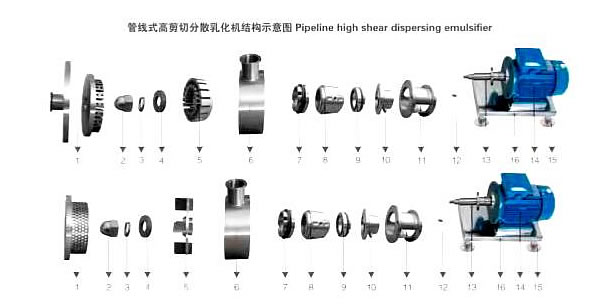

YC-RH-L1管線式高剪切分散乳化機 YC-RH-L1 pipeline type high-shear dispersion emulsifier 1.定子 2.螺帽3.彈墊4.平墊5.轉子6.泵腔7機械密密封(靜環)8.機械密封(動環)9.機械密封(靜環) 10.密封冷卻座11.泵機座12.銷子13.泵軸14.電機15.支腳16.機架 1.Stator 2.Scrwe cap 3.Flexible gasket 4.Flat gasket 5 Rotor 6. Pump cavity 7. Mechanical seal (stationary) 8. Mechanical seal(moving ring) 9.Mechanical seal(stationary)10.Seal cool seat 11.Pump seat 12. Pin 13.Pump shaft 14.Motor 15.Suppirt 16.Frame 工作原理 管線高剪切分散乳化機是用于連續生產或循環處理精細物料的高性能設備,在狹窄空間的腔體內,裝有1-3組對偶咬合的多層定、轉子。轉子在馬達的驅動下高速旋轉產生強勁的軸向吸力將物料吸入腔體。在最短的時間內對物料進行分散、剪切、乳化處理,粒徑分布范圍也顯著變窄。由此可制得精細的長期穩定的產品。 Working principle The pipeline type high-shear dispersion emulsifier is a piece of high performance equipment used for continuous production or circulating processing of fine materials. Inside the narrow space of its chamber, it is mounted with 1-3 groups of dual-geared multilayer stators and rotors. The materials are sucked into the chamber by the strong axial suction produced by the fast-turning rotor driven by the motor. Within the shortest time, the materials will be processed by the operation of dispersion, shearing and emulsification, after which the size distribution will be within a narrow range, and the finished products will be fine and stable for a long period. 應用領域 精細化工:顏料、膠水、密封劑、樹脂乳化、殺菌劑、混凝劑 Applications Fine chemical industry: pigment, glue, sealant, resin emulsifying,disinfectant, coagulation agent Petrochemical industry: lubricating grease, diesel oil emulsifying,asphalt modifying, catalyst, paraffin emulsifying. Biopharmaceutical industry: injection, antibiotic, ointment, biologicalagent, microcapsule emulsifying, sugar-coat Paint& ink: printing ink, emulsion paint, architectural coating,automotive paint, paint additives Pesticide: disinfectant, seed coating agent, herbicide, pesticideemulsion, fertilizer, bio-pesticide Nanomaterials: nanomaterials dispersion and depolymerization,reaction and extraction of nano products Food industry: fruit juice, jam, jelly, ice cream, dairy products,additives, tea beverage Daily chemical products: detergent, shampoo, face cream, lipstick,cleanser, daily fragrance Pulp & paper: pulp, adhesive, rosin emulsion, paper additives, resinemulsion YC-RH-L1管線式高剪切分散乳化機 YC-RH-L1 pipeline type high-shear dispersion emulsifier .jpg)
